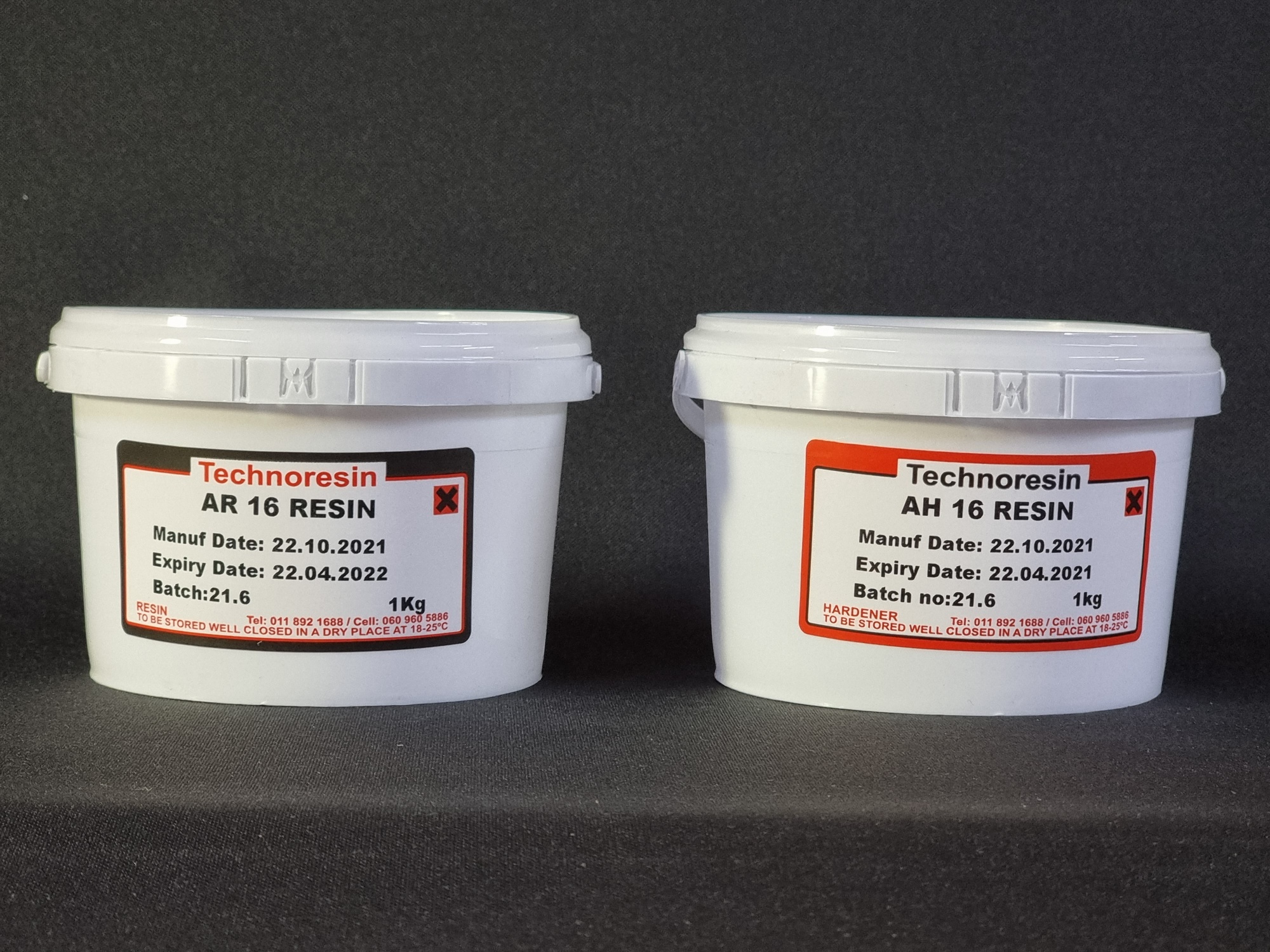

AR 16 – AH 16 GENERAL PURPOSE ADHESIVE
AR16 Resin : 1,0 Kg Bucket
AH16 Hardener: 1,0 Kg Bucket
General purpose, high strength epoxy adhesive. Thixotropic, no fillers added, resilient. Rapid development of adhesive strength. Ideal to bond steel, aluminium, stone, and concrete. Excellent adhesion to Metals and Concrete. High tensile and compressive strength. Excellent water soak and environment resistance.
Description
Colour:
AR16: White opaque liquid, slightly non – flowing
AH16: Amber opaque liquid, slightly non – flowing
Mixing Ratio: by weight or volume
Metals / Concrete/ Ceramics / Wood
AR16 : 100 AH16 : 100
Specific Gravity: AR16 : 1 AH16 : 1
Pot Life: 40 to 60 minutes (100 Grams)
Thin Film Set Time: 8 hours at 25 Deg. C
Setting Time: 6– 10 Hour at 25 Deg. C
Full Cure: 24 hours at 25 Deg C or
45 minutes at 70 Deg C
20 minutes at 100 Deg C
CHARACTERISTICS after CURE
(7 Days at 25 Deg. C) (100 – 100)
Approximate values:
Hardness: 75 Shore D
Bond Strength: 26 MPa (Steel)
Tensile Strength: 90 MPa (Steel)
Tensile Elongation 9 %
Flexural Strength: 70 MPa (Steel)
Lap Shear Strength: 15 MPa (30 days on galvanised steel)
Heat Distortion Temperature: 50 Deg C
The above data are offered for customer’s guidance only. It implies no guarantee. Customers must conduct their own tests to determine the suitability of the material for their specific applications. Technoresin cannot assume responsibility for results obtained by use of this product as we have no control over end-use application or handling. Technoresin therefore specifically disclaims any damage or loss of any kind in relation to the use of this product. (Version 20.1 Date 1.2.2020)
